How to 3D print crown and bridge models
Now dental resin 3D printer crown and bridge models have been improving teeth in the market for many years, but modern technology has completely changed the life of ordinary dentists through the creation of 3D printing technology.
Dental 3D printers have brought a lot of laughter to people around the world. Their accuracy and customization technology have brought new levels of speed and efficiency to old procedures. 3D printing for dental work is developing continuously, and stereo lithography (SLA) and digital light processing (DLP) as the most commonly used technical forms have been improved.
Dentists have found countless ways to apply 3D to patients' lives. With the increasing strength in the field of beauty and health, joining the 3D crown and bridge model printing industry is a good way to improve dental hygiene and self-healing. Improve the market.
How do you 3D print your teeth?
Dental 3D printing has made great progress in creating crowns and bridges in an extremely simple way. Although technically sophisticated, the process is easy to implement and provides accurate results for patients seeking benefits.
Dental model resin is a kind of material that can be used for high-precision modeling from denture. Working principle of 3D crown and bridge model process:
Scanning: the dentist uses a scanner to scan the patient's mouth to create a perfect impression.
Creation: the scanned data is processed and analyzed to create a successful smile.
3D printing: import the final data into the optimized 3D printer and enter the production stage.
Production: information from the 3D printer is sent to crown developers to create the final product.
1. Scan the new crown and bridge model
The starting point for obtaining a new set of Pearl White is to scan and record the anatomical data of the patient's mouth through a highly skilled scanner. This can be done by an intraoral scanner or even a desktop optical scanner.
This is the first step you will take when creating a 3D printed crown and bridge model.
2. Digital creation of crown and bridge models
All scanning data were processed by professional dental software; It is usually CAD and creates an outlet that can be used to manufacture crowns and model bridges later.
After importing the scanning results into your software, you can edit and improve the anatomical structure of the scanned teeth and parts of the oral cavity. Here, scan trimming also allows you to select the necessary parts of the denture to be 3D printed.
For reconstruction reasons, the selected teeth were further adjusted and the edge line was displayed to accurately produce the crown and bridge model. Final sculpting is an optional step, which can also produce more successful results and send them to export.
3. 3D printing of crown and bridge models
In the process of 3D printing, it is important to understand the thickness to be printed in order to create an easy to manage mold to improve accuracy. The recommended thickness is 0.05mm layer.
After importing the model file, it is strongly recommended to print the parts directly on the construction platform to save time and resin. You can even build hollow and solid models in this step.
The next step is to upload the print and prepare the 3D printer and resin by inserting the construction platform, resin tank and resin box into the printer. And click Print.
Important: be sure to shake the resin box thoroughly before inserting the 3D printer - this will allow better flow and more accurate results.

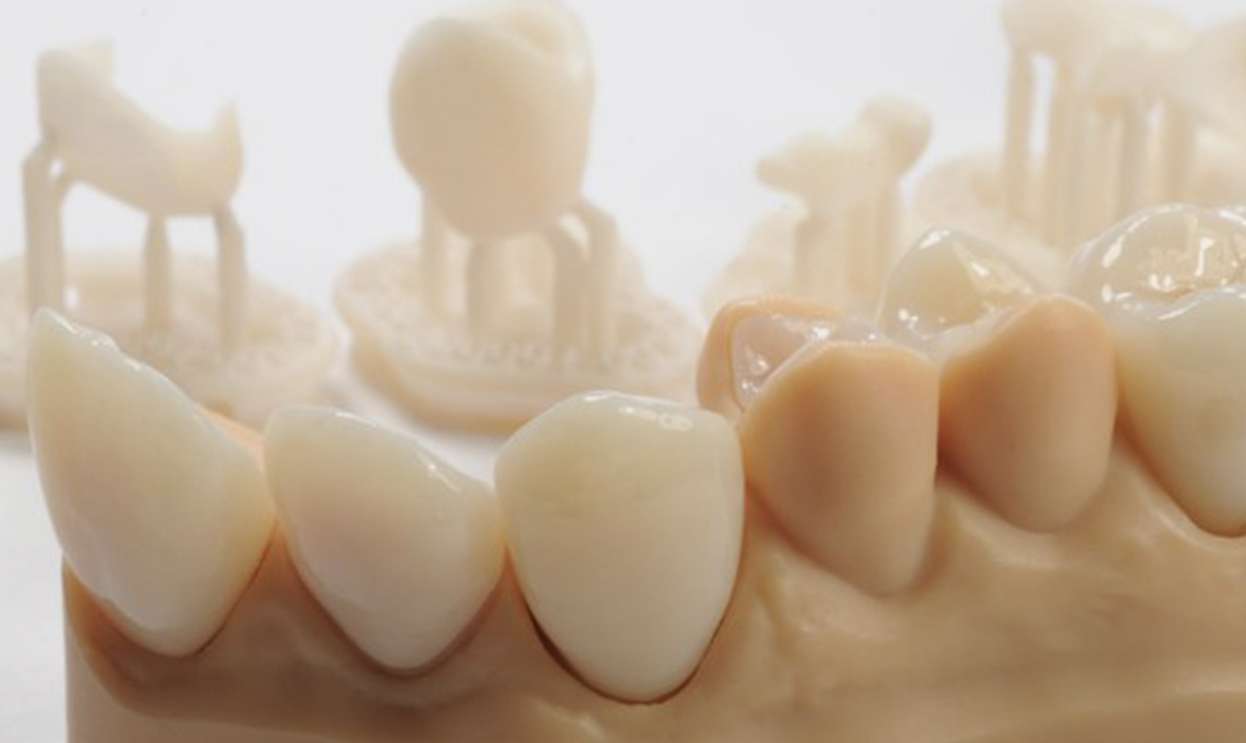

4. Production of crown and bridge models
The final step in obtaining new shiny teeth is the production stage. Once 3D printing is ready, modified and finally implemented, tangible crown and bridge models can finally be put into production.
After printing, simply remove the model from the construction platform according to all manufacturing and use instructions, and then clean the printed parts with isopropyl solution of 90% IPA or higher concentration; The recommended solution is 99%.
This will loosen any resin on the print unit and take you one step closer to the final product. You need to air dry the model and check the model for any resin residues that may affect the quality of the product.
This will take you to the final stage of 3D printing of crown and bridge models, in which the parts are cured to obtain the best mechanical effect and improve accuracy and accuracy. This is done by exposing newly manufactured parts to light and heat. All that remains is to remove any support used during 3D printing and then assemble the crown or bridge plate for professional installation.
3D printing of crown and bridge models is a revolutionary method to correct any tooth defects in patients. Fast, simple and highly accurate results make 3D dental printing a viable solution for those who want to improve the quality of dental hygiene and corrective surgery for better results and a confident smile.
